T2960

SpecSeal® EP Powershield™ Electrical Box Insert

Product Description

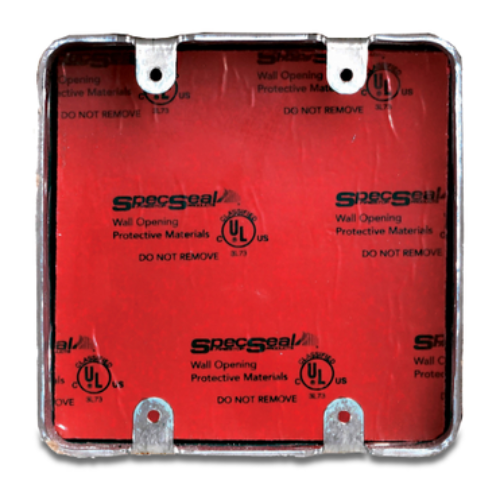

The STI SpecSeal® EP Powershield™ Electrical Box Insert is a one-component intumescent pad designed for use inside electrical switch and receptacle boxes.
It installs directly against the back wall of the box and expands up to 24× its original size when exposed to fire, quickly sealing off flames, smoke, and gases.
The insert features a peel-and-stick adhesive backing for easy, tool-free installation in new or existing walls.


Key Benefits

  • High Expansion – Expands 16–24× under fire for reliable firestop performance.
  • UL Certified – Tested to UL263 / ASTM E119, rated up to 2 hours in gypsum wallboard assemblies.
  • Easy Installation – Peel-and-stick adhesive, no tools or cure time required.
  • Retrofit-Friendly – Can be installed in existing walls and boxes.
  • Non-Conductive & Safe – Designed for use inside electrical boxes, with no mess or residue.
  • Labor Saving – Installs before or after wallboard installation with minimal effort.

Packaging

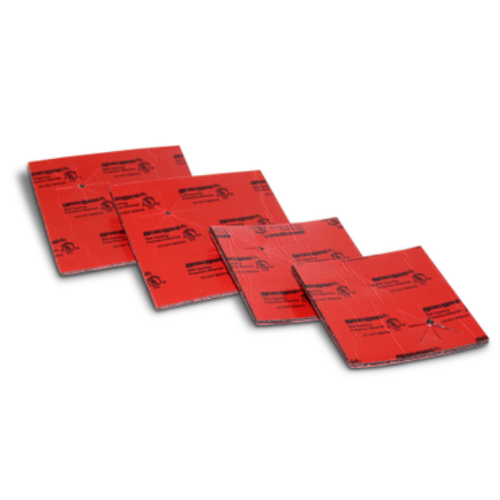

  • Sizes: EP44 (95 × 95 mm), EP45 (114 × 114 mm), EP55 (124 × 124 mm)
  • Color: Red
  • Thickness: 1/8” (3 mm)
  • Case Qty: EP44 – 20 pcs, EP45 – 20 pcs, EP55 – 250 pcs (bulk options available)
  • Shelf Life: No limit when stored below 130 °F (54 °C)

Downloadable Resources

TDS
SDS
