Product Overview
Professional internal PVC waterstops designed for embedded installation in concrete joints.

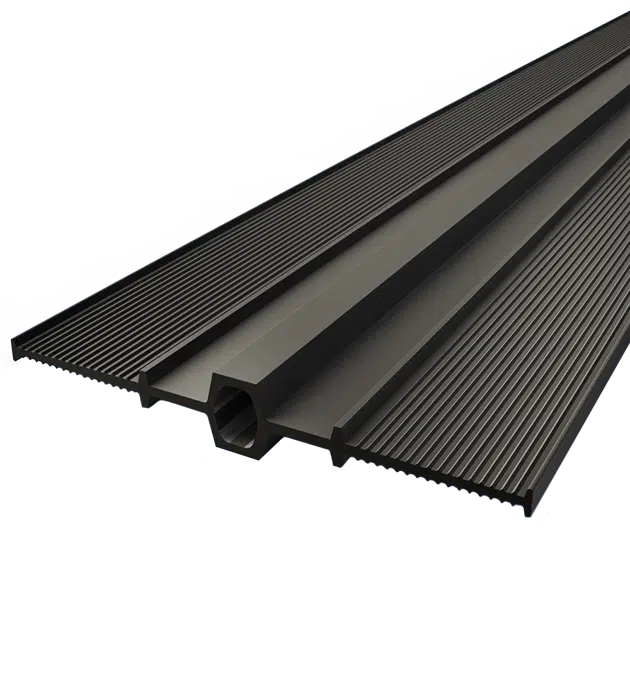

Series BAE D features a central ring for expansion joints that require movement accommodation,
while Series BAE A provides reliable sealing for construction joints.
Key Specifications
- Material: PVC (Polyvinyl Chloride)
- Shore Hardness: 75 ± 5
- Density: 1.46 ± 0.5
- Tensile Strength: ≥ 8 N/mm²
- Elongation at Break: ≥ 275%
- Standards Compliance: DIN 16941 (dimensional tolerances)
Available Models & Dimensions
Series BAE D (Expansion Joints)
BAE D — Internal Waterstop Dimensions
| Type |
S (mm) |
b (mm) |
c (mm) |
H (mm) |
k (mm) |
| D 120 |
120 |
70 |
3 |
10 |
10 |
| D 150 |
150 |
70 |
3 |
10 |
10 |
| D 200 |
200 |
90 |
3.5 |
15 |
10 |
| D 240 |
240 |
90 |
4 |
15 |
20 |
| D 320 |
320 |
110 |
5 |
15 |
20 |
| D 350 |
350 |
120 |
5 |
15 |
20 |
| D 500 |
500 |
150 |
6 |
20 |
20 |
Series BAE A (Construction Joints)
BAE A — Internal Waterstop Dimensions
| Type |
S (mm) |
b (mm) |
c (mm) |
H (mm) |
| A 100 |
100 |
40 |
3 |
10 |
| A 120 |
120 |
45 |
3 |
10 |
| A 150 |
150 |
45 |
3 |
10 |
| A 200 |
200 |
70 |
3 |
15 |
| A 240 |
240 |
80 |
3.5 |
15 |
| A 320 |
320 |
110 |
4.5 |
15 |
| A 500 |
500 |
150 |
6 |
20 |
Applications
- Expansion Joints: Series BAE D for structures requiring movement accommodation (dilation, contraction, shear, settlement)
- Construction Joints: Series BAE A for cold joint waterproofing
- Concrete foundations and basement walls
- Water treatment and storage facilities
- Underground structures and tunnels
- Bridge decks and infrastructure projects
Key Performance Benefits
- Movement Accommodation: Central ring (Series BAE D) handles structural movements
- Reliable Sealing: PVC construction provides long-term water resistance
- Easy Installation: Internal placement simplifies concrete pouring
- Chemical Resistance: Withstands UV, fresh/salt water, alkaline products, diluted acids
- Quality Compliance: Manufactured to DIN 16941 dimensional standards
- Installation Support: Special clips and brass eyelets available upon request
Installation Accessories
- Special Clips: Waterstop positioning clips available upon request
- Brass Eyelets: For secure attachment during concrete placement
- Formwork Components: Retaining staples and spacers available
- Technical Support: Installation guidance and specification assistance
